P30-3M-15F

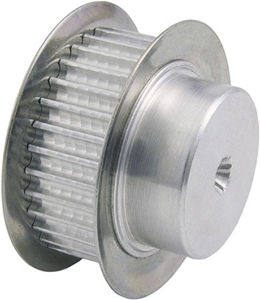

Ondrives Precision Gears and Gearboxes Part number P30-3M-15F

P30-3M-15F

HTD Synchronous Heavy Duty Timing Pulley, 3mm Pitch, To Suit 15mm Wide Belts
Ondrives Precision Gears and Gearboxes Part number P30-3M-15F Ondrives Precision Gears and Gearboxes Part number P30-3M-15F

Product specifications

Pulley Tooth3M
Belt Width15
No. of Teeth [z]30
Execution1F
PCD [d0]28.65
Tip Diameter [dk]27.89
Flange Diameter [Df]32
Hub Diameter [Dm]20
Face Width [F]19.5
Overall Width [L]26
Bore Diameter [d]6
No. of Flanges2

Product specifications

Pulley Tooth3M
Belt Width15
No. of Teeth [z]30
Execution1F
PCD [d0]28.65
Tip Diameter [dk]27.89
Flange Diameter [Df]32
Hub Diameter [Dm]20
Face Width [F]19.5
Overall Width [L]26
Bore Diameter [d]6
No. of Flanges2
