P15-3M-15F

Ondrives Precision Gears and Gearboxes Part number P15-3M-15F

P15-3M-15F

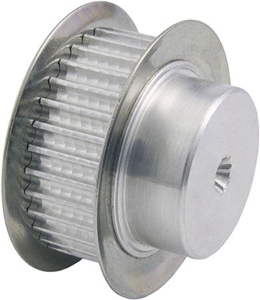

HTD Synchronous Heavy Duty Timing Pulley, 3mm Pitch, To Suit 15mm Wide Belts
Ondrives Precision Gears and Gearboxes Part number P15-3M-15F Ondrives Precision Gears and Gearboxes Part number P15-3M-15F

Product specifications

Pulley Tooth3M
Belt Width15
No. of Teeth [z]15
Execution0F
PCD [d0]14.32
Tip Diameter [dk]13.56
Flange Diameter [Df]17.50
Hub Diameter [Dm]17.50
Face Width [F]17
Overall Width [L]26
Bore Diameter [d]Centre Drilled or Pilot Bored
No. of Flanges2

Product specifications

Pulley Tooth3M
Belt Width15
No. of Teeth [z]15
Execution0F
PCD [d0]14.32
Tip Diameter [dk]13.56
Flange Diameter [Df]17.50
Hub Diameter [Dm]17.50
Face Width [F]17
Overall Width [L]26
Bore Diameter [d]Centre Drilled or Pilot Bored
No. of Flanges2
