P10-3M-15F

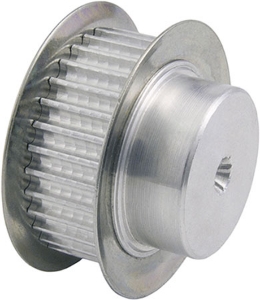

Ondrives Precision Gears and Gearboxes Part number P10-3M-15F

P10-3M-15F

HTD Synchronous Heavy Duty Timing Pulley, 3mm Pitch, To Suit 15mm Wide Belts
Ondrives Precision Gears and Gearboxes Part number P10-3M-15F Ondrives Precision Gears and Gearboxes Part number P10-3M-15F

Product specifications

Pulley Tooth3M
Belt Width15
No. of Teeth [z]10
Execution0F
PCD [d0]9.55
Tip Diameter [dk]8.79
Flange Diameter [Df]13
Hub Diameter [Dm]13
Face Width [F]17
Overall Width [L]26
Bore Diameter [d]Centre Drilled or Pilot Bored
No. of Flanges2

Product specifications

Pulley Tooth3M
Belt Width15
No. of Teeth [z]10
Execution0F
PCD [d0]9.55
Tip Diameter [dk]8.79
Flange Diameter [Df]13
Hub Diameter [Dm]13
Face Width [F]17
Overall Width [L]26
Bore Diameter [d]Centre Drilled or Pilot Bored
No. of Flanges2
