KMT15

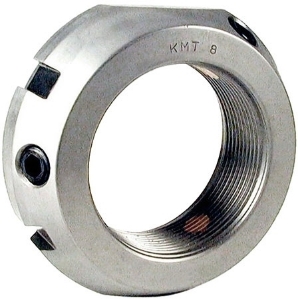

High Precision Bearing Locknut, M75

Product specifications

Thread [M x P]	M75 x 2
Diameter [D]	105
Diameter [D1]	97
Diameter [D2]	77
Diameter [D3]	93
Dimension [k] [H]	28
Dimension [S]	8
Dimension [T]	3.5
Dimension [W]	100
Static Axial Load Carrying Capacity [kN]	520
Mass [kg]	0.8
Grubscrew	M8
Recommended Grubscrew Tightening Torque [Nm]	18

Thread [M x P]	M75 x 2
Diameter [D]	105
Diameter [D1]	97
Diameter [D2]	77
Diameter [D3]	93
Dimension [k] [H]	28
Dimension [S]	8
Dimension [T]	3.5
Dimension [W]	100
Static Axial Load Carrying Capacity [kN]	520
Mass [kg]	0.8
Grubscrew	M8
Recommended Grubscrew Tightening Torque [Nm]	18
