KMT11

Ondrives Precision Gears and Gearboxes Part number KMT11

KMT11

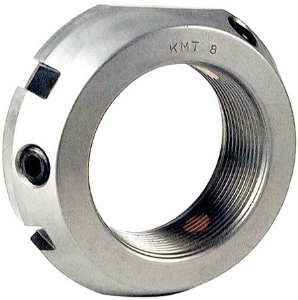

High Precision Bearing Locknut, M55
Ondrives Precision Gears and Gearboxes Part number KMT11 Ondrives Precision Gears and Gearboxes Part number KMT11 Ondrives Precision Gears and Gearboxes Part number KMT11

Product specifications

Thread [M x P]M55 x 2
Diameter [D]85
Diameter [D1]78
Diameter [D2]58
Diameter [D3]74
Dimension [k] [H]25
Dimension [S]7
Dimension [T]3
Dimension [W]80
Static Axial Load Carrying Capacity [kN]340
Mass [kg]0.54
GrubscrewM8
Recommended Grubscrew Tightening Torque [Nm]18

Product specifications

Thread [M x P]M55 x 2
Diameter [D]85
Diameter [D1]78
Diameter [D2]58
Diameter [D3]74
Dimension [k] [H]25
Dimension [S]7
Dimension [T]3
Dimension [W]80
Static Axial Load Carrying Capacity [kN]340
Mass [kg]0.54
GrubscrewM8
Recommended Grubscrew Tightening Torque [Nm]18
