ZWB60A1200A

Ondrives Precision Gears and Gearboxes Part number ZWB60A1200A

ZWB60A1200A

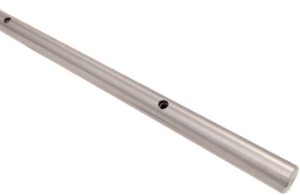

Steel Hardened and Ground Drilled Linear Shafting for use with Open Linear Bearings, 60mm Diameter x 1200mm long, (4) M14 holes at 300mm pitch
Ondrives Precision Gears and Gearboxes Part number ZWB60A1200A Ondrives Precision Gears and Gearboxes Part number ZWB60A1200A

Product specifications

Shaft StyleDrilled
MaterialCf53 Hardened Steel
Diameter [D] h660
Length1200
Thread [d]M14
No. of Holes4
Pitch/Lead300
Dimension [P/2] ±0.2150
Tap Depth [I]25
Recess Depth [H]4
Recess Diameter [S]15

Product specifications

Shaft StyleDrilled
MaterialCf53 Hardened Steel
Diameter [D] h660
Length1200
Thread [d]M14
No. of Holes4
Pitch/Lead300
Dimension [P/2] ±0.2150
Tap Depth [I]25
Recess Depth [H]4
Recess Diameter [S]15
