ZWB50B1200A

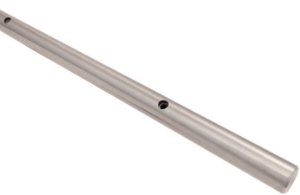

Ondrives Precision Gears and Gearboxes Part number ZWB50B1200A

ZWB50B1200A

Steel Hardened and Ground Drilled Linear Shafting for use with Open Linear Bearings, 50mm Diameter x 1200mm long, 6 (M12) holes at 200mm pitch
Ondrives Precision Gears and Gearboxes Part number ZWB50B1200A Ondrives Precision Gears and Gearboxes Part number ZWB50B1200A

Product specifications

Shaft StyleDrilled
MaterialCf53 Hardened Steel
Diameter [D] h650
Length1200
Thread [d]M12
No. of Holes6
Pitch/Lead200
Dimension [P/2] ±0.2100
Tap Depth [I]21
Recess Depth [H]4
Recess Diameter [S]13

Product specifications

Shaft StyleDrilled
MaterialCf53 Hardened Steel
Diameter [D] h650
Length1200
Thread [d]M12
No. of Holes6
Pitch/Lead200
Dimension [P/2] ±0.2100
Tap Depth [I]21
Recess Depth [H]4
Recess Diameter [S]13
