ZWB12A600A

Ondrives Precision Gears and Gearboxes Part number ZWB12A600A

ZWB12A600A

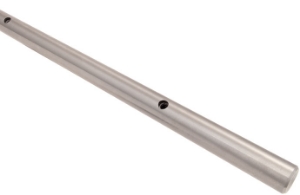

Steel Hardened and Ground Drilled Linear Shafting for use with Open Linear Bearings, 12mm Diameter x 600mm long, (8) M4 holes at 75mm pitch
Ondrives Precision Gears and Gearboxes Part number ZWB12A600A Ondrives Precision Gears and Gearboxes Part number ZWB12A600A

Product specifications

Shaft StyleDrilled
MaterialCf53 Hardened Steel
Diameter [D] h612
Length600
Thread [d]M4
No. of Holes8
Pitch/Lead75
Dimension [P/2] ±0.237.5
Tap Depth [I]7
Recess Depth [H]2
Recess Diameter [S]5

Product specifications

Shaft StyleDrilled
MaterialCf53 Hardened Steel
Diameter [D] h612
Length600
Thread [d]M4
No. of Holes8
Pitch/Lead75
Dimension [P/2] ±0.237.5
Tap Depth [I]7
Recess Depth [H]2
Recess Diameter [S]5
