UPW1.5-2H

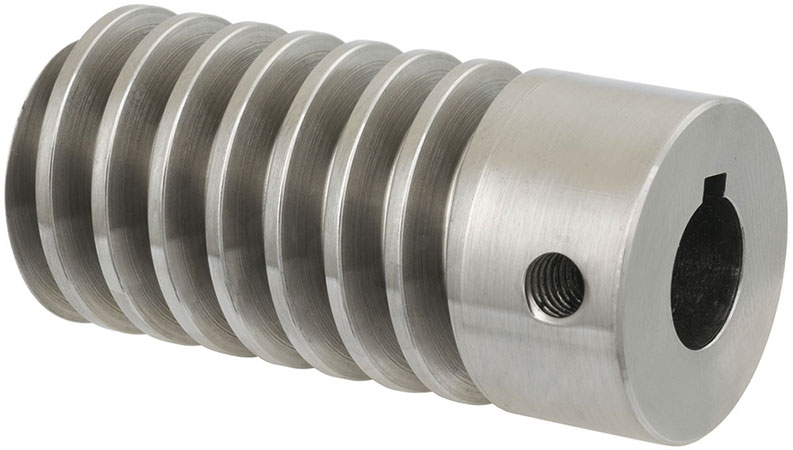

Ondrives Precision Gears and Gearboxes Part number UPW1.5-2H

UPW1.5-2H

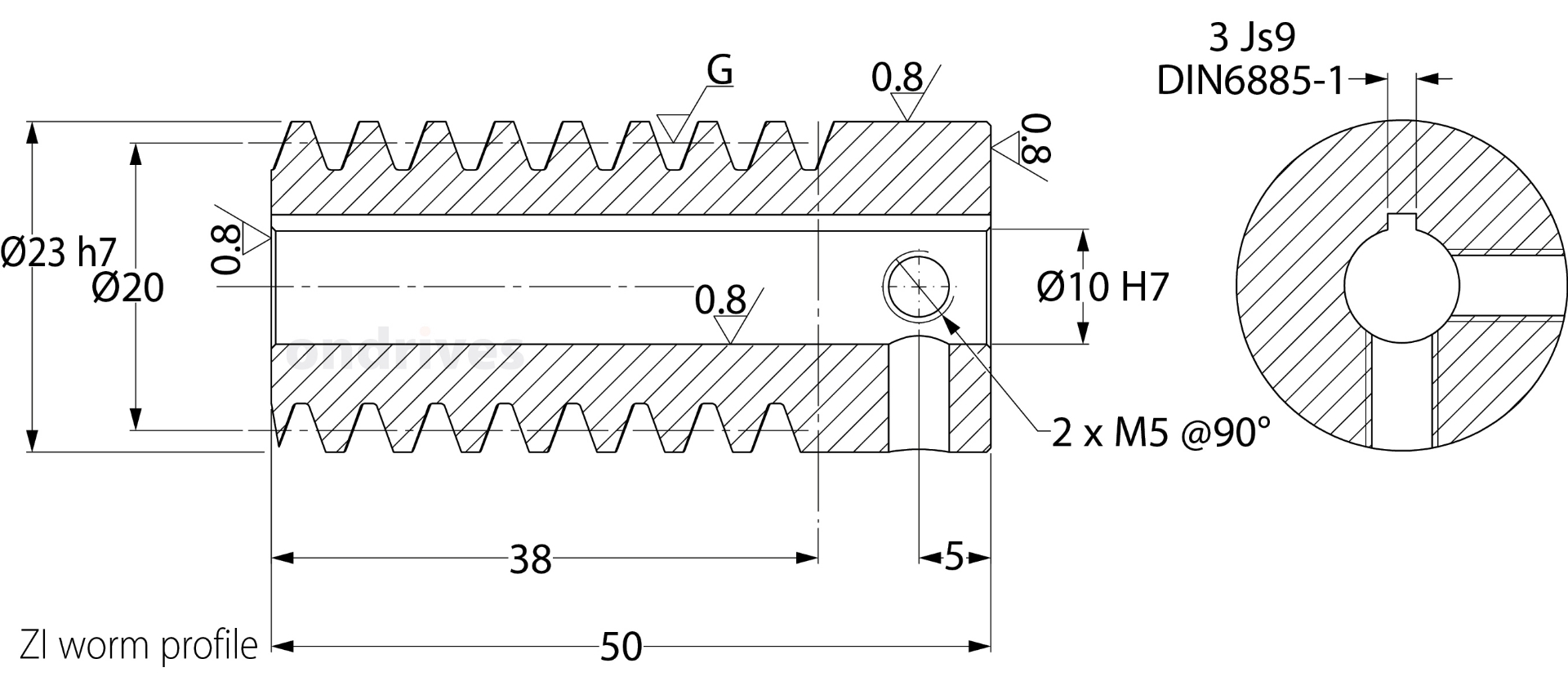

1.5 Module Case Hardened 805M20 (58-62HRC) 2 Start Ground Bore Worm 20° PA Quality Grade 6e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number UPW1.5-2H Ondrives Precision Gears and Gearboxes Part number UPW1.5-2H

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3974 DIN39676e25
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.5
Pressure Angle20°
Gear Tooth TypeWorm Ground

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3974 DIN39676e25
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
Axial Module mx1.5
Pressure Angle20°
Gear Tooth TypeWorm Ground
