TB9SS

Ondrives Precision Gears and Gearboxes Part number TB9SS

TB9SS

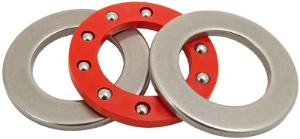

Stainless Steel Ball Thrust Bearing Sets. 19mm Bore
Ondrives Precision Gears and Gearboxes Part number TB9SS Ondrives Precision Gears and Gearboxes Part number TB9SS

Product specifications

Bore Diameter [d]19.08 +0.13/-0.00
Diameter [A]31.92 +0.00/-0.13
Dimension [T]8.56 - 8.88
Dimension [k] [H]2.36 ±0.08
Diameter [C]25.4
Ball Diameter [B]4
No. of Balls8

Product specifications

Bore Diameter [d]19.08 +0.13/-0.00
Diameter [A]31.92 +0.00/-0.13
Dimension [T]8.56 - 8.88
Dimension [k] [H]2.36 ±0.08
Diameter [C]25.4
Ball Diameter [B]4
No. of Balls8
