TB5SS

Ondrives Precision Gears and Gearboxes Part number TB5SS

TB5SS

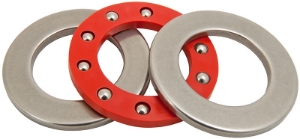

Stainless Steel Ball Thrust Bearing Sets. 8mm Bore
Ondrives Precision Gears and Gearboxes Part number TB5SS Ondrives Precision Gears and Gearboxes Part number TB5SS

Product specifications

Bore Diameter [d]8.08 +0.13/-0.00
Diameter [A]15.92 +0.00/-0.13
Dimension [T]4.82 - 5.02
Dimension [k] [H]1.27 ±0.05
Diameter [C]11.9
Ball Diameter [B]2.38
No. of Balls9

Product specifications

Bore Diameter [d]8.08 +0.13/-0.00
Diameter [A]15.92 +0.00/-0.13
Dimension [T]4.82 - 5.02
Dimension [k] [H]1.27 ±0.05
Diameter [C]11.9
Ball Diameter [B]2.38
No. of Balls9
