TB4SS

TB4SS

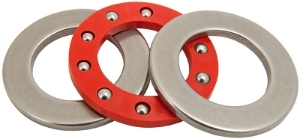

Stainless Steel Ball Thrust Bearing Sets. 7mm Bore

Product specifications

Bore Diameter [d]7.08 +0.13/-0.00
Diameter [A]16.92 +0.00/-0.13
Dimension [T]4.82 - 5.02
Dimension [k] [H]1.27 ±0.05
Diameter [C]11.9
Ball Diameter [B]2.38
No. of Balls9

Product specifications

Bore Diameter [d]7.08 +0.13/-0.00
Diameter [A]16.92 +0.00/-0.13
Dimension [T]4.82 - 5.02
Dimension [k] [H]1.27 ±0.05
Diameter [C]11.9
Ball Diameter [B]2.38
No. of Balls9
