LPHS-20M

LPH-M Flange Mount

LPHS-20M

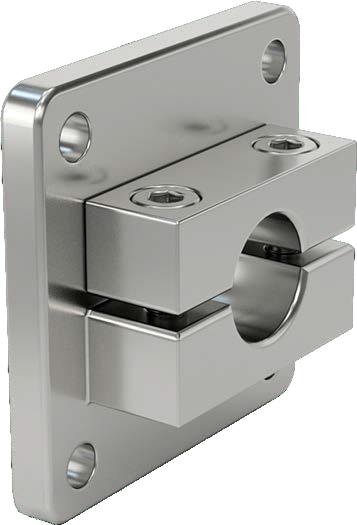

304 Stainless Steel Shaft Support,Flange Mount, Top Loading

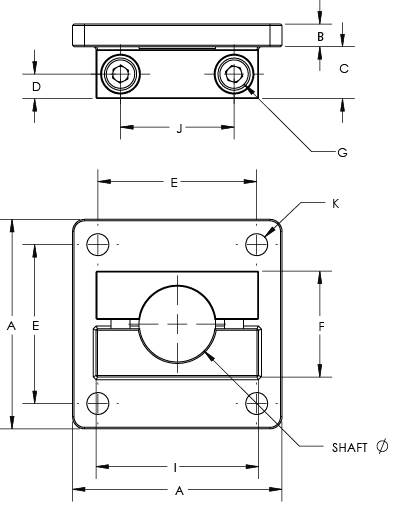

LPH-M Flange Mount Drawing

Product specifications

TypeFlange
Material304 Stainless Steel
Shaft Diameter20
Width [A]55
Height [B]8
Depth [C]14
[D]7
Fixing Centre Distance [E]42
Tab Thickness [F]28
Capscrew [G]M5
[I]43
[J]30
Screw Clearance [K]Ø6
Mass [kg]0.203

Product specifications

TypeFlange
Material304 Stainless Steel
Shaft Diameter20
Width [A]55
Height [B]8
Depth [C]14
[D]7
Fixing Centre Distance [E]42
Tab Thickness [F]28
Capscrew [G]M5
[I]43
[J]30
Screw Clearance [K]Ø6
Mass [kg]0.203
