LPH-40M

LPH-M Flange Mount

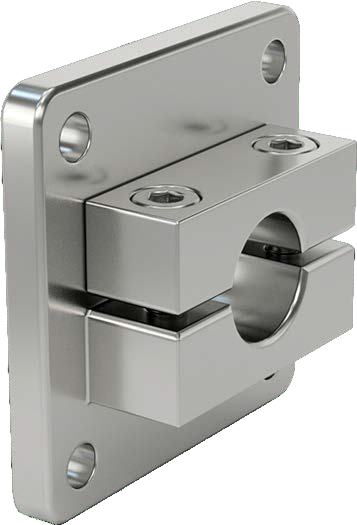

LPH-40M

Aluminium Shaft Support,Flange Mount, Top Loading

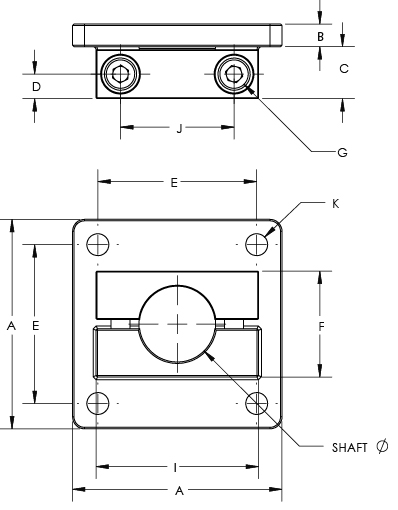

LPH-M Flange Mount Drawing

Product specifications

TypeFlange
MaterialAluminium
Shaft Diameter40
Width [A]100
Height [B]10
Depth [C]20
[D]10
Fixing Centre Distance [E]75
Tab Thickness [F]52
Capscrew [G]M8
[I]72
[J]55
Screw Clearance [K]Ø10
Mass [kg]0.334

Product specifications

TypeFlange
MaterialAluminium
Shaft Diameter40
Width [A]100
Height [B]10
Depth [C]20
[D]10
Fixing Centre Distance [E]75
Tab Thickness [F]52
Capscrew [G]M8
[I]72
[J]55
Screw Clearance [K]Ø10
Mass [kg]0.334
