LPH-30M

LPH-M Flange Mount

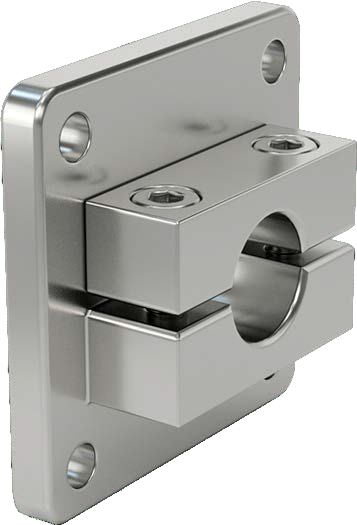

LPH-30M

Aluminium Shaft Support,Flange Mount, Top Loading

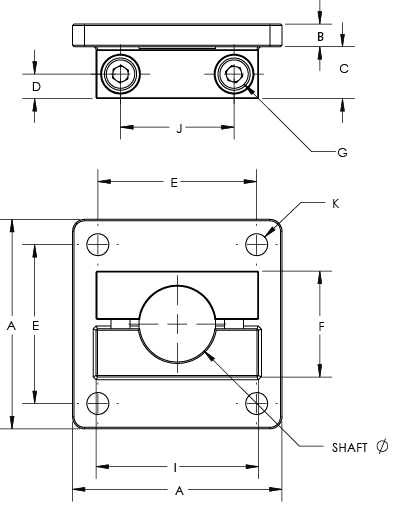

LPH-M Flange Mount Drawing

Product specifications

TypeFlange
MaterialAluminium
Shaft Diameter30
Width [A]87
Height [B]8
Depth [C]20
[D]10
Fixing Centre Distance [E]64
Tab Thickness [F]40
Capscrew [G]M8
[I]62
[J]44
Screw Clearance [K]Ø10
Mass [kg]0.217

Product specifications

TypeFlange
MaterialAluminium
Shaft Diameter30
Width [A]87
Height [B]8
Depth [C]20
[D]10
Fixing Centre Distance [E]64
Tab Thickness [F]40
Capscrew [G]M8
[I]62
[J]44
Screw Clearance [K]Ø10
Mass [kg]0.217
