LPH-25M

LPH-M Flange Mount

LPH-25M

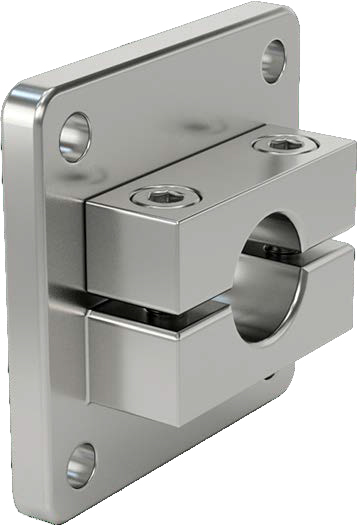

Aluminium Shaft Support,Flange Mount, Top Loading

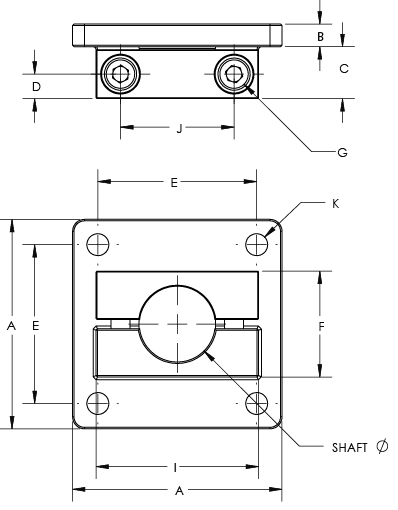

LPH-M Flange Mount Drawing

Product specifications

TypeFlange
MaterialAluminium
Shaft Diameter25
Width [A]68
Height [B]8
Depth [C]20
[D]10
Fixing Centre Distance [E]54
Tab Thickness [F]34
Capscrew [G]M6
[I]52
[J]38
Screw Clearance [K]Ø7
Mass [kg]0.143

Product specifications

TypeFlange
MaterialAluminium
Shaft Diameter25
Width [A]68
Height [B]8
Depth [C]20
[D]10
Fixing Centre Distance [E]54
Tab Thickness [F]34
Capscrew [G]M6
[I]52
[J]38
Screw Clearance [K]Ø7
Mass [kg]0.143
