LPH-16M

LPH-M Flange Mount

LPH-16M

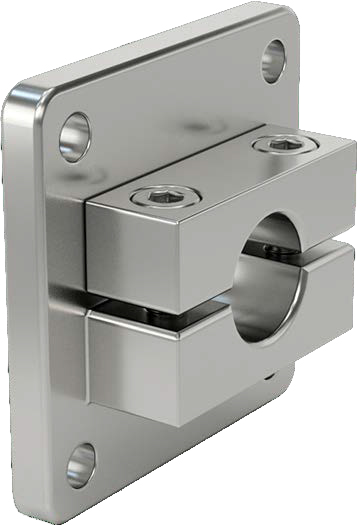

Aluminium Shaft Support,Flange Mount, Top Loading

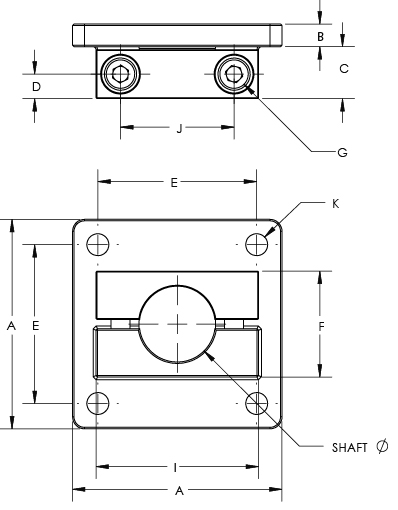

LPH-M Flange Mount Drawing

Product specifications

TypeFlange
MaterialAluminium
Shaft Diameter16
Width [A]55
Height [B]6
Depth [C]14
[D]7
Fixing Centre Distance [E]42
Tab Thickness [F]26
Capscrew [G]M5
[I]39
[J]26
Screw Clearance [K]Ø6
Mass [kg]0.069

Product specifications

TypeFlange
MaterialAluminium
Shaft Diameter16
Width [A]55
Height [B]6
Depth [C]14
[D]7
Fixing Centre Distance [E]42
Tab Thickness [F]26
Capscrew [G]M5
[I]39
[J]26
Screw Clearance [K]Ø6
Mass [kg]0.069
