LPH-12M

LPH-M Flange Mount

LPH-12M

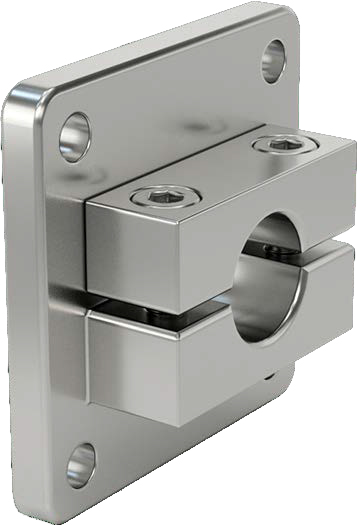

Aluminium Shaft Support,Flange Mount, Top Loading

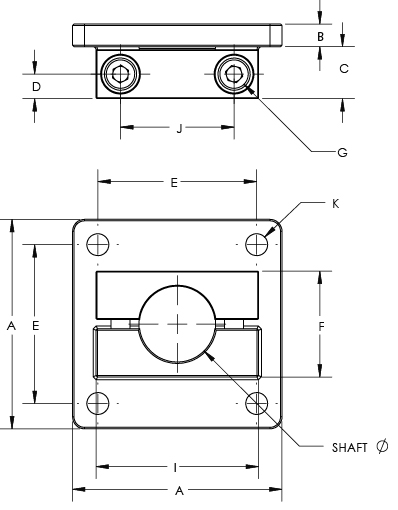

LPH-M Flange Mount Drawing

Product specifications

TypeFlange
MaterialAluminium
Shaft Diameter12
Width [A]43
Height [B]6
Depth [C]13
[D]6
Fixing Centre Distance [E]32
Tab Thickness [F]22
Capscrew [G]M4
[I]30
[J]20
Screw Clearance [K]Ø5
Mass [kg]0.042

Product specifications

TypeFlange
MaterialAluminium
Shaft Diameter12
Width [A]43
Height [B]6
Depth [C]13
[D]6
Fixing Centre Distance [E]32
Tab Thickness [F]22
Capscrew [G]M4
[I]30
[J]20
Screw Clearance [K]Ø5
Mass [kg]0.042
