LPH-08M

LPH-M Flange Mount

LPH-08M

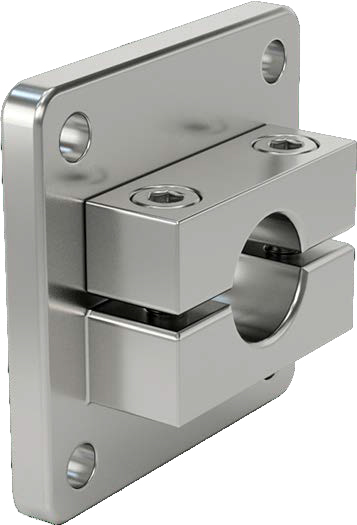

Aluminium Shaft Support,Flange Mount, Top Loading

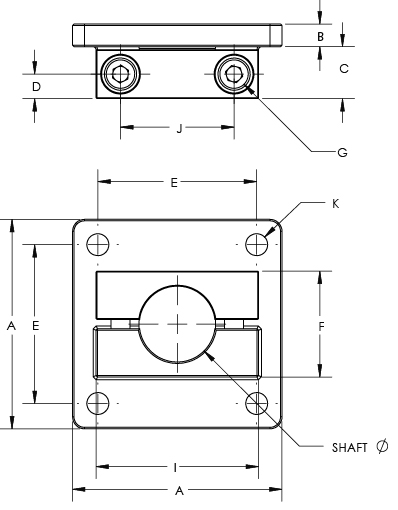

LPH-M Flange Mount Drawing

Product specifications

TypeFlange
MaterialAluminium
Shaft Diameter8
Width [A]36
Height [B]5
Depth [C]11
[D]5
Fixing Centre Distance [E]28
Tab Thickness [F]18
Capscrew [G]M4
[I]26
[J]16
Screw Clearance [K]Ø5
Mass [kg]0.025

Product specifications

TypeFlange
MaterialAluminium
Shaft Diameter8
Width [A]36
Height [B]5
Depth [C]11
[D]5
Fixing Centre Distance [E]28
Tab Thickness [F]18
Capscrew [G]M4
[I]26
[J]16
Screw Clearance [K]Ø5
Mass [kg]0.025
