FFS40-XH-2AR-12

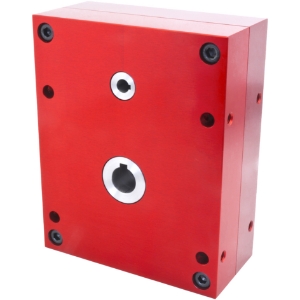

Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes

FFS40-XH-2AR-12

Hardened parallel gears, ≤5' backlash, 12mm flush bore input, 25mm flush bore output, 166Nm-420Nm output torque, ratio 2:1
Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Product specifications

TorqueHigh
Gear Ratio [i=]2:1
Centre Dist. [a]88.00
Input Bore Ø12
Nom Output Torque T₂n [Nm]180
Output Backlash j≤0.08°
Efficiency n1 1000 r/min [ηz]93%
Mass [kg]13.493
Max. Input Radial Load Fr1 N300
Max. Output Radial Load Fr2 N800
Max. Output Axial Load Fa2 N500
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

TorqueHigh
Gear Ratio [i=]2:1
Centre Dist. [a]88.00
Input Bore Ø12
Nom Output Torque T₂n [Nm]180
Output Backlash j≤0.08°
Efficiency n1 1000 r/min [ηz]93%
Mass [kg]13.493
Max. Input Radial Load Fr1 N300
Max. Output Radial Load Fr2 N800
Max. Output Axial Load Fa2 N500
Lubrication GreaseShell Gadus S5 V42P 2.5
