CFF27x2

Ondrives Precision Gears and Gearboxes Part number CFF27x2

CFF27x2

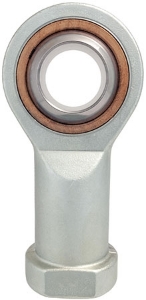

Heavy Duty Female Steel Rod End with Self-Lubricating Bronze Insert. Right Hand Thread. 30mm Bore.
Ondrives Precision Gears and Gearboxes Part number CFF27x2 Ondrives Precision Gears and Gearboxes Part number CFF27x2 Ondrives Precision Gears and Gearboxes Part number CFF27x2 Ondrives Precision Gears and Gearboxes Part number CFF27x2

Product specifications

Diameter [d] H730
Dimension [B]37 +0/-0.12
Dimension [C]25
Dimension [dk]50.8
Diameter [d1]34.8
Dimension [d2]70
Thread [d3]M27 x 2
Diameter [d4]40
Diameter [d5]50
Dimension [h]110
Dimension [L1]51
Dimension [b]145
Dimension [L3]36
Dimension [L4]15
Dimension [W]41
Max. Tilt Angle17°
Static Load Rating [N]40000
Mass (g)1140

Product specifications

Diameter [d] H730
Dimension [B]37 +0/-0.12
Dimension [C]25
Dimension [dk]50.8
Diameter [d1]34.8
Dimension [d2]70
Thread [d3]M27 x 2
Diameter [d4]40
Diameter [d5]50
Dimension [h]110
Dimension [L1]51
Dimension [b]145
Dimension [L3]36
Dimension [L4]15
Dimension [W]41
Max. Tilt Angle17°
Static Load Rating [N]40000
Mass (g)1140
