CFF.00.16LH

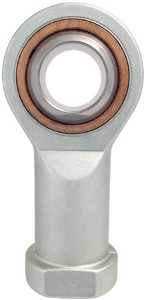

Ondrives Precision Gears and Gearboxes Part number CFF.00.16LH

CFF.00.16LH

Heavy Duty Female Steel Rod End with Self-Lubricating Bronze Insert. Left Hand Thread. 16mm Bore.
Ondrives Precision Gears and Gearboxes Part number CFF.00.16LH Ondrives Precision Gears and Gearboxes Part number CFF.00.16LH Ondrives Precision Gears and Gearboxes Part number CFF.00.16LH Ondrives Precision Gears and Gearboxes Part number CFF.00.16LH

Product specifications

Diameter [d] H716
Dimension [B]21 +0/-0.12
Dimension [C]15
Dimension [dk]28.575
Diameter [d1]19.3
Dimension [d2]42
Thread [d3]M16
Diameter [d4]22
Diameter [d5]27
Dimension [h]64
Dimension [L1]28
Dimension [b]85
Dimension [L3]23
Dimension [L4]8
Dimension [W]22
Max. Tilt Angle15°
Static Load Rating [N]18000
Mass (g)220

Product specifications

Diameter [d] H716
Dimension [B]21 +0/-0.12
Dimension [C]15
Dimension [dk]28.575
Diameter [d1]19.3
Dimension [d2]42
Thread [d3]M16
Diameter [d4]22
Diameter [d5]27
Dimension [h]64
Dimension [L1]28
Dimension [b]85
Dimension [L3]23
Dimension [L4]8
Dimension [W]22
Max. Tilt Angle15°
Static Load Rating [N]18000
Mass (g)220
