CFF.00.08LH

Ondrives Precision Gears and Gearboxes Part number CFF.00.08LH

CFF.00.08LH

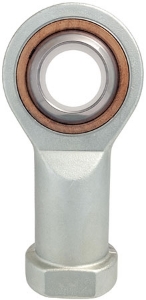

Heavy Duty Female Steel Rod End with Self-Lubricating Bronze Insert. Left Hand Thread. 8mm Bore.
Ondrives Precision Gears and Gearboxes Part number CFF.00.08LH Ondrives Precision Gears and Gearboxes Part number CFF.00.08LH Ondrives Precision Gears and Gearboxes Part number CFF.00.08LH Ondrives Precision Gears and Gearboxes Part number CFF.00.08LH

Product specifications

Diameter [d] H78
Dimension [B]12 +0/-0.12
Dimension [C]9
Dimension [dk]15.875
Diameter [d1]10.4
Dimension [d2]24
Thread [d3]M8
Diameter [d4]12.5
Diameter [d5]16
Dimension [h]36
Dimension [L1]16
Dimension [b]48
Dimension [L3]13
Dimension [L4]5
Dimension [W]14
Max. Tilt Angle14°
Static Load Rating [N]6500
Mass (g)46

Product specifications

Diameter [d] H78
Dimension [B]12 +0/-0.12
Dimension [C]9
Dimension [dk]15.875
Diameter [d1]10.4
Dimension [d2]24
Thread [d3]M8
Diameter [d4]12.5
Diameter [d5]16
Dimension [h]36
Dimension [L1]16
Dimension [b]48
Dimension [L3]13
Dimension [L4]5
Dimension [W]14
Max. Tilt Angle14°
Static Load Rating [N]6500
Mass (g)46
