BEF-20/LH

Ondrives Precision Gears and Gearboxes Part number BEF-20/LH

BEF-20/LH

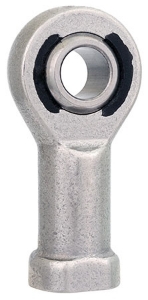

Heavy Duty Female Steel Rod End with Integral Spherical Plain Bearing to DIN ISO 12240-4. Left Hand Thread. 20mm Bore.
Ondrives Precision Gears and Gearboxes Part number BEF-20/LH Ondrives Precision Gears and Gearboxes Part number BEF-20/LH Ondrives Precision Gears and Gearboxes Part number BEF-20/LH

Product specifications

Diameter [d]20
Dimension [B]25
Dimension [C]18
Dimension [dk]34.92
Diameter [d1]24.3
Dimension [d2]50
Thread [d3]M20 x 1.5
Diameter [d4]34
Diameter [d5]27.5
Dimension [h]77
Dimension [L1]33
Dimension [b]102
Dimension [L3]26
Dimension [L4]10
Dimension [W]30
Max. Tilt Angle14.5°
Static Load Rating [N]82200
Dynamic Load Rating [N]30800
Mass (g)386
