SFE18.45

SFE18.45

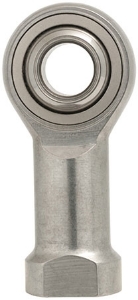

Standard Duty Female Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 18mm Bore.

Product specifications

Diameter [d] H718
Dimension [B]23 +0/-0.05
Dimension [C]16.5 ±0.02
Dimension [dk]31.75
Diameter [d1]21.89
Dimension [d2]42
Thread [d3]M18 x 1.5
Diameter [d4]25
Diameter [d5]31
Dimension [h]71
Dimension [L1]33 ±0.05
Dimension [b]92
Dimension [L4]10
Dimension [W]27
Max. Tilt Angle15°
Static Load Rating [N]20100
Mass (g)280
