SFE14.45

SFE14.45

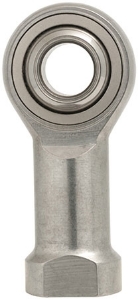

Standard Duty Female Stainless Steel Rod End with Uniflon® E Liner. Right Hand Thread. 14mm Bore.

Product specifications

Diameter [d] H714
Dimension [B]19 +0/-0.05
Dimension [C]13.5 ±0.02
Dimension [dk]25.4
Diameter [d1]16.86
Dimension [d2]34
Thread [d3]M14 x 2
Diameter [d4]20
Diameter [d5]25
Dimension [h]57
Dimension [L1]25 ±0.05
Dimension [b]74
Dimension [L4]8
Dimension [W]21
Max. Tilt Angle16°
Static Load Rating [N]13700
Mass (g)150
