EHD12-5A

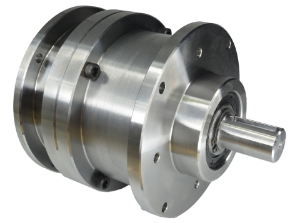

Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes

EHD12-5A

Inline epicyclic servo reducer, 14mm input bore, 22mm output shaft, 75Nm-140Nm output torque, ratio 5:1
Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for servo gearbox made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for servo gearbox made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]5:1
Nom Output Torque T₂n [Nm]110
Output Backlash j≤0.13°
Efficiency n1 1000 r/min [ηz]92%
Output Rotation DirectionSame as Input
Mass [kg]9.248
Max. Output Radial Load Fr2 N600
Max. Output Axial Load Fa2 N600
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Gear Ratio [i=]5:1
Nom Output Torque T₂n [Nm]110
Output Backlash j≤0.13°
Efficiency n1 1000 r/min [ηz]92%
Output Rotation DirectionSame as Input
Mass [kg]9.248
Max. Output Radial Load Fr2 N600
Max. Output Axial Load Fa2 N600
Lubrication GreaseShell Gadus S5 V42P 2.5
