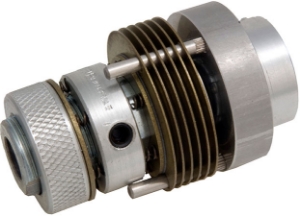

SAS32-12
SAS32-12
Miniature Friction Slip Clutch with Adjustable Torque, Open Plate Design
Product specifications
Capacity at 50 rpm (Nm)
6
Capacity at 50 rpm (Watts)
30
Friction Surfaces
12
Diameter [A]
50.8
Bore Diameter [B]
12
Max. Bore Diameter [B]
16
Dimension [C]
72.8
Diameter [D]
35.05
Dimension [E]
12.7
Dimension [EE]
25.4
Dimension [F]
47.8
Dimension [G]
42.47
Dimension [k] [H]
4.78
Specifications
Overview
Product specifications
Capacity at 50 rpm (Nm)
6
Capacity at 50 rpm (Watts)
30
Friction Surfaces
12
Diameter [A]
50.8
Bore Diameter [B]
12
Max. Bore Diameter [B]
16
Dimension [C]
72.8
Diameter [D]
35.05
Dimension [E]
12.7
Dimension [EE]
25.4
Dimension [F]
47.8
Dimension [G]
42.47
Dimension [k] [H]
4.78
