SAS24-10

Ondrives Precision Gears and Gearboxes Part number SAS24-10

SAS24-10

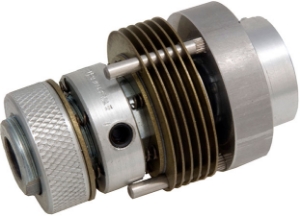

Miniature Friction Slip Clutch with Adjustable Torque, Open Plate Design
Ondrives Precision Gears and Gearboxes Part number SAS24-10 Ondrives Precision Gears and Gearboxes Part number SAS24-10

Product specifications

Capacity at 50 rpm (Nm)3
Capacity at 50 rpm (Watts)15
Friction Surfaces12
Diameter [A]38.1
Bore Diameter [B]10
Max. Bore Diameter [B]13
Dimension [C]63.5
Diameter [D]25.65
Dimension [E]9.4
Dimension [EE]19.05
Dimension [F]44.4
Dimension [G]33.32
Dimension [k] [H]3.18

Product specifications

Capacity at 50 rpm (Nm)3
Capacity at 50 rpm (Watts)15
Friction Surfaces12
Diameter [A]38.1
Bore Diameter [B]10
Max. Bore Diameter [B]13
Dimension [C]63.5
Diameter [D]25.65
Dimension [E]9.4
Dimension [EE]19.05
Dimension [F]44.4
Dimension [G]33.32
Dimension [k] [H]3.18
