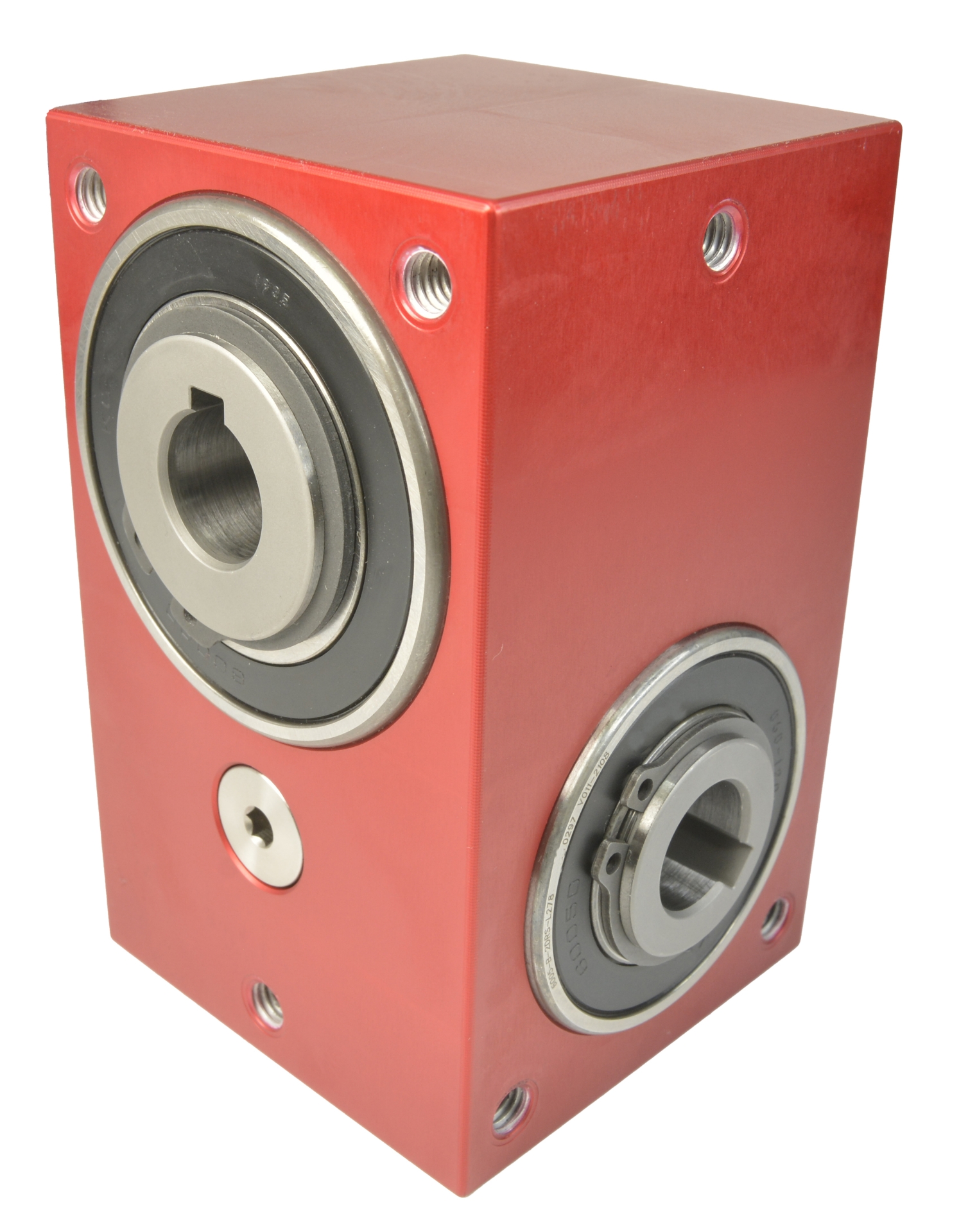

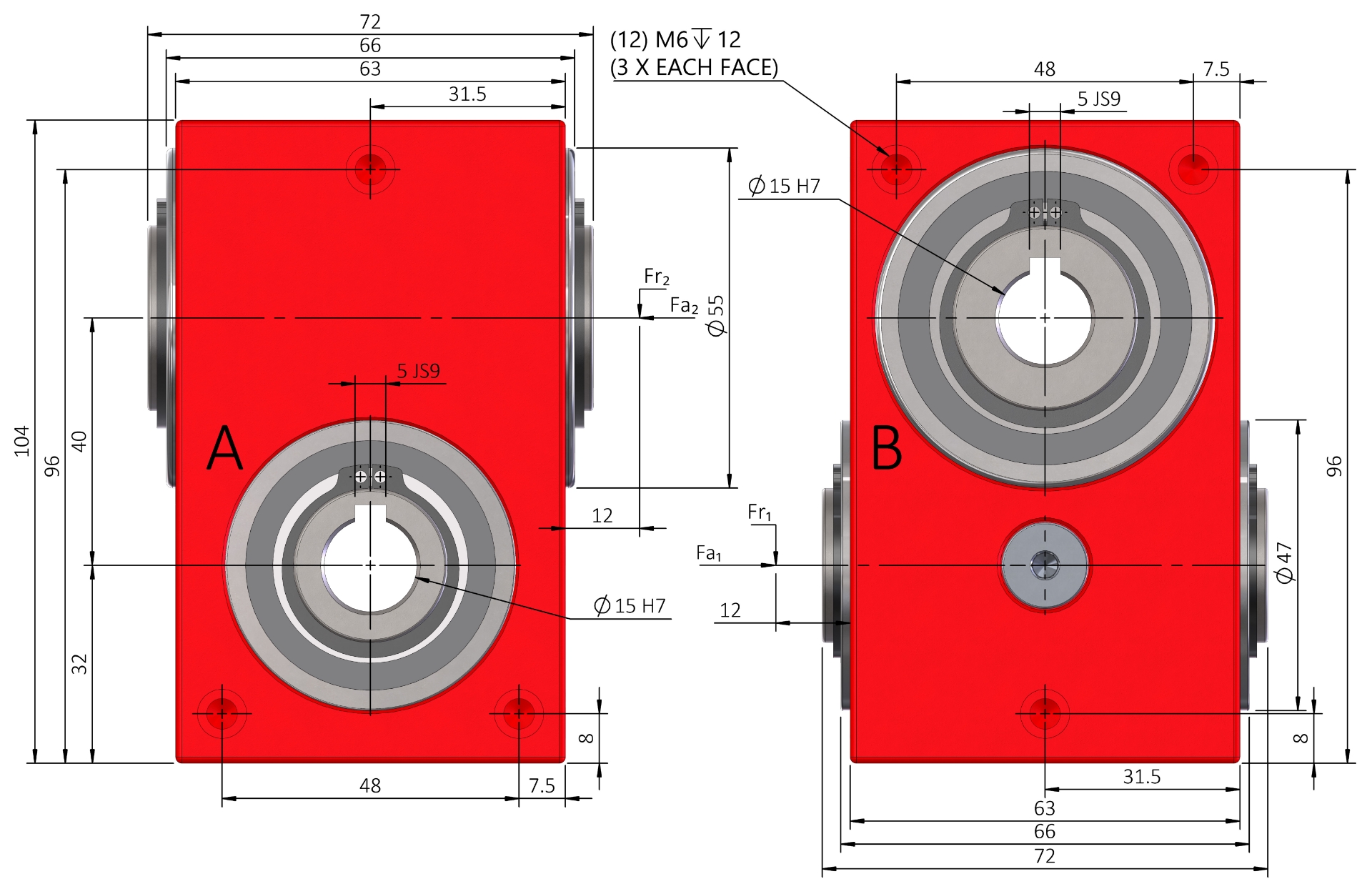

E40-RH 20Nm 40mm-Centres

Crossed Axis Helical Gearboxes



Designed and Manufactured by Ondrives at our factory in the UK

Sku
(Part No.)
Gear Ratio [i=]
Helix Direction
Centre Dist. [a]
Output Torque T₂max [Nm]
Output Torque T₂n [Nm]
Output Backlash j
Bore Diameter mm Ø H7
E40-11:1Right Hand40.00103.80≤0.75°15
E40-22:1Right Hand40.00103.80≤0.75°15
E40-33:1Right Hand40.00103.80≤0.75°15
E40-44:1Right Hand40.00103.80≤0.75°15
E40-55:1Right Hand40.00103.80≤0.75°15
E40-88:1Right Hand40.00207.30≤0.75°15
E40-1010:1Right Hand40.00208.00≤0.75°15
E40-2020:1Right Hand40.00208.80≤0.75°15
E40-4040:1Right Hand40.00209.70≤0.75°15
E40-1-141:1Right Hand40.00103.80≤0.75°14
E40-2-142:1Right Hand40.00103.80≤0.75°14
E40-3-143:1Right Hand40.00103.80≤0.75°14
E40-4-144:1Right Hand40.00103.80≤0.75°14
E40-5-145:1Right Hand40.00103.80≤0.75°14
E40-8-148:1Right Hand40.00207.30≤0.75°14
E40-10-1410:1Right Hand40.00208.00≤0.75°14
E40-20-1420:1Right Hand40.00208.80≤0.75°14
E40-40-1440:1Right Hand40.00209.70≤0.75°14
E40-1-121:1Right Hand40.00103.80≤0.75°12
E40-2-122:1Right Hand40.00103.80≤0.75°12
E40-3-123:1Right Hand40.00103.80≤0.75°12
E40-4-124:1Right Hand40.00103.80≤0.75°12
E40-5-125:1Right Hand40.00103.80≤0.75°12
E40-8-128:1Right Hand40.00207.30≤0.75°12
E40-10-1210:1Right Hand40.00208.00≤0.75°12
E40-20-1220:1Right Hand40.00208.80≤0.75°12
E40-40-1240:1Right Hand40.00209.70≤0.75°12
E40-1A1:1Right Hand40.00103.80≤0.5°15
E40-2A2:1Right Hand40.00103.80≤0.5°15
E40-3A3:1Right Hand40.00103.80≤0.5°15
E40-4A4:1Right Hand40.00103.80≤0.5°15
E40-5A5:1Right Hand40.00103.80≤0.5°15
E40-8A8:1Right Hand40.00207.30≤0.5°15
E40-10A10:1Right Hand40.00208.00≤0.5°15
E40-20A20:1Right Hand40.00208.80≤0.5°15
E40-40A40:1Right Hand40.00209.70≤0.5°15
E40-1A-121:1Right Hand40.00103.80≤0.5°12
E40-2A-122:1Right Hand40.00103.80≤0.5°12
E40-3A-123:1Right Hand40.00103.80≤0.5°12
E40-4A-124:1Right Hand40.00103.80≤0.5°12
E40-5A-125:1Right Hand40.00103.80≤0.5°12
E40-8A-128:1Right Hand40.00207.30≤0.5°12
E40-10A-1210:1Right Hand40.00208.00≤0.5°12
E40-20A-1220:1Right Hand40.00208.80≤0.5°12
E40-40A-1240:1Right Hand40.00209.70≤0.5°12
E40-1A-141:1Right Hand40.00103.80≤0.5°14
E40-2A-142:1Right Hand40.00103.80≤0.5°14
E40-3A-143:1Right Hand40.00103.80≤0.5°14
E40-4A-144:1Right Hand40.00103.80≤0.5°14
E40-5A-145:1Right Hand40.00103.80≤0.5°14
E40-8A-148:1Right Hand40.00207.30≤0.5°14
E40-10A-1410:1Right Hand40.00208.00≤0.5°14
E40-20A-1420:1Right Hand40.00208.80≤0.5°14
E40-40A-1440:1Right Hand40.00209.70≤0.5°14
E40-1AR1:1Right Hand40.00103.80≤0.16°15
E40-1AR-121:1Right Hand40.00103.80≤0.16°12
E40-1AR-141:1Right Hand40.00103.80≤0.16°14
E40-2AR2:1Right Hand40.00103.80≤0.16°15
E40-2AR-122:1Right Hand40.00103.80≤0.16°12
E40-2AR-142:1Right Hand40.00103.80≤0.16°14
E40-3AR3:1Right Hand40.00103.80≤0.16°15
E40-3AR-123:1Right Hand40.00103.80≤0.16°12
E40-3AR-143:1Right Hand40.00103.80≤0.16°14
E40-4AR4:1Right Hand40.00103.80≤0.16°15
E40-4AR-124:1Right Hand40.00103.80≤0.16°12
E40-4AR-144:1Right Hand40.00103.80≤0.16°14
E40-5AR5:1Right Hand40.00103.80≤0.16°15
E40-5AR-125:1Right Hand40.00103.80≤0.16°12
E40-5AR-145:1Right Hand40.00103.80≤0.16°14
E40-8AR8:1Right Hand40.00207.30≤0.16°15
E40-8AR-128:1Right Hand40.00207.30≤0.16°12
E40-8AR-148:1Right Hand40.00207.30≤0.16°14
E40-10AR10:1Right Hand40.00208.00≤0.16°15
E40-10AR-1210:1Right Hand40.00208.00≤0.16°12
E40-10AR-1410:1Right Hand40.00208.00≤0.16°14
E40-20AR20:1Right Hand40.00208.80≤0.16°15
E40-20AR-1220:1Right Hand40.00208.80≤0.16°12
E40-20AR-1420:1Right Hand40.00208.80≤0.16°14
E40-40AR40:1Right Hand40.00209.70≤0.16°15
E40-40AR-1240:1Right Hand40.00209.70≤0.16°12
E40-40AR-1440:1Right Hand40.00209.70≤0.16°14
;
;
