E20-8A

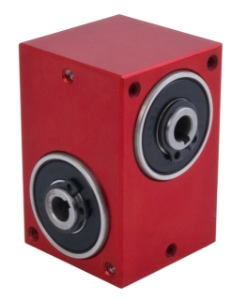

Right angle crossed axis helical gearbox reducer, ≤30' backlash, 6mm bores, 1.05Nm-3.62Nm output torque, ratio 8:1

Product specifications

Gear Ratio [i=]	8:1
Centre Dist. [a]	20.00
Helix Direction	Right Hand
Output Torque T₂max [Nm]	4
Output Torque T₂n [Nm]	1.31
Output Backlash j	≤0.5°
Efficiency n1 1000 r/min [ηz]	80%
Reflected Inertia at Input (kg•m²)	1.622 x 10-6
Mass [kg]	0.256
Max. Output Radial Load Fr2 N	150
Max. Output Axial Load Fa2 N	100
Lubrication Grease	Shell Gadus S2 V220AD 2
