DRC : Duplex Chains

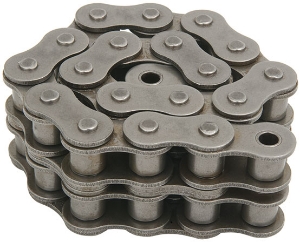

DRC-50.8
DRC-50.8
Duplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606
Product specifications
Material
Steel DIN 8187
ISO No.
32B-2
Pitch/Lead
50.8
Dimension [b1]
30.99
Dimension [b2]
45.5
Dimension [d1]
17.81
Dimension [d3]
29.21
Dimension [F1]
126
Dimension [F2]
133.9
Dimension [h]
42.2
Dimension [s1]
7
Dimension [s2]
6
Dimension [e]
58.55
Bearing Area [f cm²]
16.21
Breaking Load [FB N]
450000
Chain Weight [q kg/m]
21
Specifications
Overview
Product specifications
Material
Steel DIN 8187
ISO No.
32B-2
Pitch/Lead
50.8
Dimension [b1]
30.99
Dimension [b2]
45.5
Dimension [d1]
17.81
Dimension [d3]
29.21
Dimension [F1]
126
Dimension [F2]
133.9
Dimension [h]
42.2
Dimension [s1]
7
Dimension [s2]
6
Dimension [e]
58.55
Bearing Area [f cm²]
16.21
Breaking Load [FB N]
450000
Chain Weight [q kg/m]
21
