DRC-38.1

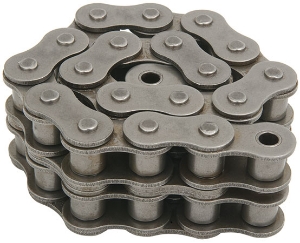

Ondrives Precision Gears and Gearboxes Part number DRC-38.1

DRC-38.1

Duplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606
Ondrives Precision Gears and Gearboxes Part number DRC-38.1 Ondrives Precision Gears and Gearboxes Part number DRC-38.1

Product specifications

MaterialSteel DIN 8187
ISO No.24B-2
Pitch/Lead38.1
Dimension [b1]25.4
Dimension [b2]37.9
Dimension [d1]14.63
Dimension [d3]25.4
Dimension [F1]101
Dimension [F2]107.6
Dimension [h]33.4
Dimension [s1]5.5
Dimension [s2]5
Dimension [e]48.36
Bearing Area [f cm²]11.09
Breaking Load [FB N]280000
Chain Weight [q kg/m]13.5

Product specifications

MaterialSteel DIN 8187
ISO No.24B-2
Pitch/Lead38.1
Dimension [b1]25.4
Dimension [b2]37.9
Dimension [d1]14.63
Dimension [d3]25.4
Dimension [F1]101
Dimension [F2]107.6
Dimension [h]33.4
Dimension [s1]5.5
Dimension [s2]5
Dimension [e]48.36
Bearing Area [f cm²]11.09
Breaking Load [FB N]280000
Chain Weight [q kg/m]13.5
