BH0401-94-6202

Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer

BH0401-94-6202

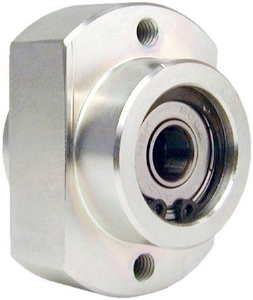

Steel Double Housed Bearing Assembly with Circlip Retainer. Double Flat Style. 3 - 30mm Bores.
Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 080 M40 (ck40)
Bore Diameter [d]15
Diameter [D]35 x 18 deep
Diameter [C]33
Dimension [L]51
Dimension [L1]19
Dimension [b]24
Dimension [L3]8
Diameter [A]94
Diameter [H] PCD78
Diameter [H]15 x 8.5 deep (M8 Capscrew)
Thread [d]M10
Diameter [J]62
Dimension [F]7
Dimension [N]67
Bearing Size6202ZZ (15 x 35 x 11)

Product specifications

MaterialSteel 080 M40 (ck40)
Bore Diameter [d]15
Diameter [D]35 x 18 deep
Diameter [C]33
Dimension [L]51
Dimension [L1]19
Dimension [b]24
Dimension [L3]8
Diameter [A]94
Diameter [H] PCD78
Diameter [H]15 x 8.5 deep (M8 Capscrew)
Thread [d]M10
Diameter [J]62
Dimension [F]7
Dimension [N]67
Bearing Size6202ZZ (15 x 35 x 11)
