UCPX17

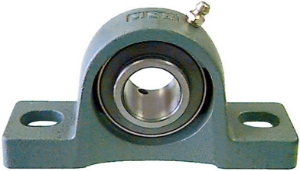

Ondrives Precision Gears and Gearboxes Part number UCPX17

UCPX17

Cast Iron Cylindrical Bore Pillow Ball Bearing Unit with Set Screws. 12 - 55mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCPX17 Ondrives Precision Gears and Gearboxes Part number UCPX17

Product specifications

Shaft Diameter85
Dimension [k] [H]101.6
Dimension [L]381
Dimension [J]283
Dimension [A]102
Dimension [N]27
Dimension [N1]30
Dimension [H1]40
Dimension [H2]200
Dimension [L1]110
Dimension [B]96
Dimension [S]39.7
Bolt SizeM22
Dynamic Load Rating [N]96000
Static Load Rating [N]71500
Mass [kg]15

Product specifications

Shaft Diameter85
Dimension [k] [H]101.6
Dimension [L]381
Dimension [J]283
Dimension [A]102
Dimension [N]27
Dimension [N1]30
Dimension [H1]40
Dimension [H2]200
Dimension [L1]110
Dimension [B]96
Dimension [S]39.7
Bolt SizeM22
Dynamic Load Rating [N]96000
Static Load Rating [N]71500
Mass [kg]15
