UCPX13

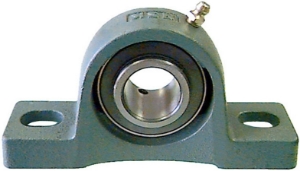

Ondrives Precision Gears and Gearboxes Part number UCPX13

UCPX13

Cast Iron Cylindrical Bore Pillow Ball Bearing Unit with Set Screws. 12 - 55mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCPX13 Ondrives Precision Gears and Gearboxes Part number UCPX13

Product specifications

Shaft Diameter65
Dimension [k] [H]76.2
Dimension [L]286
Dimension [J]203
Dimension [A]83
Dimension [N]25
Dimension [N1]28
Dimension [H1]33
Dimension [H2]154
Dimension [L1]80
Dimension [B]74.6
Dimension [S]30.2
Bolt SizeM20
Dynamic Load Rating [N]62000
Static Load Rating [N]44000
Mass [kg]7.2

Product specifications

Shaft Diameter65
Dimension [k] [H]76.2
Dimension [L]286
Dimension [J]203
Dimension [A]83
Dimension [N]25
Dimension [N1]28
Dimension [H1]33
Dimension [H2]154
Dimension [L1]80
Dimension [B]74.6
Dimension [S]30.2
Bolt SizeM20
Dynamic Load Rating [N]62000
Static Load Rating [N]44000
Mass [kg]7.2
