UCPX12

Ondrives Precision Gears and Gearboxes Part number UCPX12

UCPX12

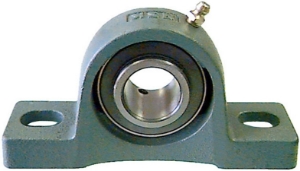

Cast Iron Cylindrical Bore Pillow Ball Bearing Unit with Set Screws. 12 - 55mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCPX12 Ondrives Precision Gears and Gearboxes Part number UCPX12

Product specifications

Shaft Diameter60
Dimension [k] [H]76.2
Dimension [L]286
Dimension [J]203
Dimension [A]83
Dimension [N]25
Dimension [N1]28
Dimension [H1]33
Dimension [H2]151
Dimension [L1]80
Dimension [B]65.1
Dimension [S]25.4
Bolt SizeM20
Dynamic Load Rating [N]57500
Static Load Rating [N]40000
Mass [kg]6.9

Product specifications

Shaft Diameter60
Dimension [k] [H]76.2
Dimension [L]286
Dimension [J]203
Dimension [A]83
Dimension [N]25
Dimension [N1]28
Dimension [H1]33
Dimension [H2]151
Dimension [L1]80
Dimension [B]65.1
Dimension [S]25.4
Bolt SizeM20
Dynamic Load Rating [N]57500
Static Load Rating [N]40000
Mass [kg]6.9
