UCPX10

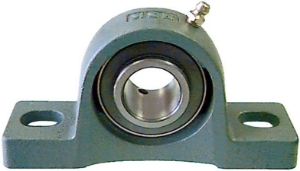

Ondrives Precision Gears and Gearboxes Part number UCPX10

UCPX10

Cast Iron Cylindrical Bore Pillow Ball Bearing Unit with Set Screws. 12 - 55mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCPX10 Ondrives Precision Gears and Gearboxes Part number UCPX10

Product specifications

Shaft Diameter50
Dimension [k] [H]63.5
Dimension [L]241
Dimension [J]171
Dimension [A]73
Dimension [N]20
Dimension [N1]23
Dimension [H1]27
Dimension [H2]126
Dimension [L1]70
Dimension [B]55.6
Dimension [S]22.2
Bolt SizeM16
Dynamic Load Rating [N]43500
Static Load Rating [N]29300
Mass [kg]4.1

Product specifications

Shaft Diameter50
Dimension [k] [H]63.5
Dimension [L]241
Dimension [J]171
Dimension [A]73
Dimension [N]20
Dimension [N1]23
Dimension [H1]27
Dimension [H2]126
Dimension [L1]70
Dimension [B]55.6
Dimension [S]22.2
Bolt SizeM16
Dynamic Load Rating [N]43500
Static Load Rating [N]29300
Mass [kg]4.1
