UCPX09

Ondrives Precision Gears and Gearboxes Part number UCPX09

UCPX09

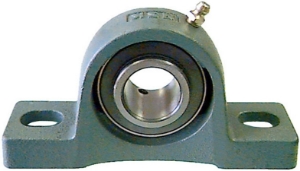

Cast Iron Cylindrical Bore Pillow Ball Bearing Unit with Set Screws. 12 - 55mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCPX09 Ondrives Precision Gears and Gearboxes Part number UCPX09

Product specifications

Shaft Diameter45
Dimension [k] [H]58.7
Dimension [L]222
Dimension [J]156
Dimension [A]67
Dimension [N]20
Dimension [N1]23
Dimension [H1]26
Dimension [H2]116
Dimension [L1]65
Dimension [B]51.6
Dimension [S]19
Bolt SizeM16
Dynamic Load Rating [N]35000
Static Load Rating [N]23200
Mass [kg]3.2

Product specifications

Shaft Diameter45
Dimension [k] [H]58.7
Dimension [L]222
Dimension [J]156
Dimension [A]67
Dimension [N]20
Dimension [N1]23
Dimension [H1]26
Dimension [H2]116
Dimension [L1]65
Dimension [B]51.6
Dimension [S]19
Bolt SizeM16
Dynamic Load Rating [N]35000
Static Load Rating [N]23200
Mass [kg]3.2
