UCPX05

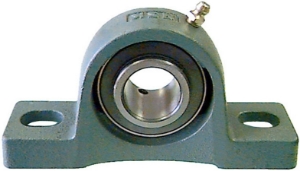

Ondrives Precision Gears and Gearboxes Part number UCPX05

UCPX05

Cast Iron Cylindrical Bore Pillow Ball Bearing Unit with Set Screws. 12 - 55mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCPX05 Ondrives Precision Gears and Gearboxes Part number UCPX05

Product specifications

Shaft Diameter25
Dimension [k] [H]44.4
Dimension [L]159
Dimension [J]119
Dimension [A]51
Dimension [N]17
Dimension [N1]20
Dimension [H1]18
Dimension [H2]83
Dimension [L1]50
Dimension [B]38.1
Dimension [S]15.9
Bolt SizeM14
Dynamic Load Rating [N]19500
Static Load Rating [N]11300
Mass [kg]1.4

Product specifications

Shaft Diameter25
Dimension [k] [H]44.4
Dimension [L]159
Dimension [J]119
Dimension [A]51
Dimension [N]17
Dimension [N1]20
Dimension [H1]18
Dimension [H2]83
Dimension [L1]50
Dimension [B]38.1
Dimension [S]15.9
Bolt SizeM14
Dynamic Load Rating [N]19500
Static Load Rating [N]11300
Mass [kg]1.4
