UCP310

Ondrives Precision Gears and Gearboxes Part number UCP310

UCP310

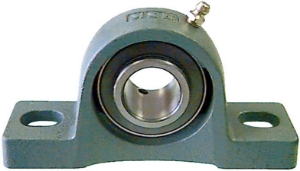

Cast Iron Cylindrical Bore Pillow Ball Bearing Unit with Set Screws. 12 - 55mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCP310 Ondrives Precision Gears and Gearboxes Part number UCP310

Product specifications

Shaft Diameter50
Dimension [k] [H]75
Dimension [L]275
Dimension [J]212
Dimension [A]75
Dimension [N]20
Dimension [N1]35
Dimension [H1]27
Dimension [H2]143
Dimension [L1]75
Dimension [B]61
Dimension [S]22
Bolt SizeM16
Dynamic Load Rating [N]62000
Static Load Rating [N]38500
Mass [kg]5.6

Product specifications

Shaft Diameter50
Dimension [k] [H]75
Dimension [L]275
Dimension [J]212
Dimension [A]75
Dimension [N]20
Dimension [N1]35
Dimension [H1]27
Dimension [H2]143
Dimension [L1]75
Dimension [B]61
Dimension [S]22
Bolt SizeM16
Dynamic Load Rating [N]62000
Static Load Rating [N]38500
Mass [kg]5.6
