UCP207

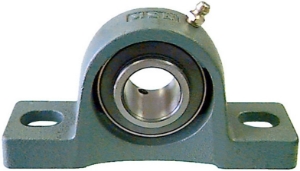

Ondrives Precision Gears and Gearboxes Part number UCP207

UCP207

Cast Iron Cylindrical Bore Pillow Ball Bearing Unit with Set Screws. 12 - 55mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCP207 Ondrives Precision Gears and Gearboxes Part number UCP207

Product specifications

Shaft Diameter35
Dimension [k] [H]47.6
Dimension [L]167
Dimension [J]127
Dimension [A]48
Dimension [N]17
Dimension [N1]20
Dimension [H1]18
Dimension [H2]93
Dimension [L1]54
Dimension [B]42.9
Dimension [S]17.5
Bolt SizeM14
Dynamic Load Rating [N]25700
Static Load Rating [N]15300
Mass [kg]1.6

Product specifications

Shaft Diameter35
Dimension [k] [H]47.6
Dimension [L]167
Dimension [J]127
Dimension [A]48
Dimension [N]17
Dimension [N1]20
Dimension [H1]18
Dimension [H2]93
Dimension [L1]54
Dimension [B]42.9
Dimension [S]17.5
Bolt SizeM14
Dynamic Load Rating [N]25700
Static Load Rating [N]15300
Mass [kg]1.6
