UCP205

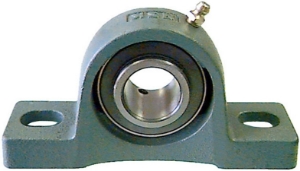

Ondrives Precision Gears and Gearboxes Part number UCP205

UCP205

Cast Iron Cylindrical Bore Pillow Ball Bearing Unit with Set Screws. 12 - 55mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCP205 Ondrives Precision Gears and Gearboxes Part number UCP205

Product specifications

Shaft Diameter25
Dimension [k] [H]36.5
Dimension [L]140
Dimension [J]105
Dimension [A]38
Dimension [N]13
Dimension [N1]16
Dimension [H1]15
Dimension [H2]71
Dimension [L1]42
Dimension [B]34.1
Dimension [S]14.3
Bolt SizeM10
Dynamic Load Rating [N]14000
Static Load Rating [N]7850
Mass [kg]0.8

Product specifications

Shaft Diameter25
Dimension [k] [H]36.5
Dimension [L]140
Dimension [J]105
Dimension [A]38
Dimension [N]13
Dimension [N1]16
Dimension [H1]15
Dimension [H2]71
Dimension [L1]42
Dimension [B]34.1
Dimension [S]14.3
Bolt SizeM10
Dynamic Load Rating [N]14000
Static Load Rating [N]7850
Mass [kg]0.8
