UCP204

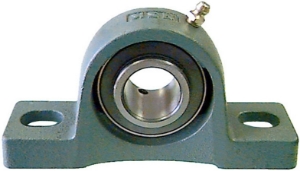

Ondrives Precision Gears and Gearboxes Part number UCP204

UCP204

Cast Iron Cylindrical Bore Pillow Ball Bearing Unit with Set Screws. 12 - 55mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCP204 Ondrives Precision Gears and Gearboxes Part number UCP204

Product specifications

Shaft Diameter20
Dimension [k] [H]33.3
Dimension [L]127
Dimension [J]95
Dimension [A]38
Dimension [N]13
Dimension [N1]16
Dimension [H1]14
Dimension [H2]65
Dimension [L1]42
Dimension [B]31
Dimension [S]12.7
Bolt SizeM10
Dynamic Load Rating [N]12800
Static Load Rating [N]6600
Mass [kg]0.7

Product specifications

Shaft Diameter20
Dimension [k] [H]33.3
Dimension [L]127
Dimension [J]95
Dimension [A]38
Dimension [N]13
Dimension [N1]16
Dimension [H1]14
Dimension [H2]65
Dimension [L1]42
Dimension [B]31
Dimension [S]12.7
Bolt SizeM10
Dynamic Load Rating [N]12800
Static Load Rating [N]6600
Mass [kg]0.7
