KMTA19

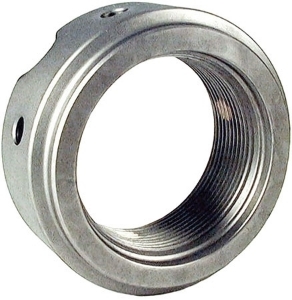

Ondrives Precision Gears and Gearboxes Part number KMTA19

KMTA19

Compact Design Bearing Locknut, M95
Ondrives Precision Gears and Gearboxes Part number KMTA19 Ondrives Precision Gears and Gearboxes Part number KMTA19 Ondrives Precision Gears and Gearboxes Part number KMTA19

Product specifications

Thread [M x P]M95 x 2
Diameter [D]125
Diameter [D1]114
Diameter [D2]98
Dimension [k] [H]32
Dimension [J1]113
Dimension [J2]17
Dimension [N1]6.4
Dimension [N2]8
Static Axial Load Carrying Capacity [kN]710
Mass [kg]1.25
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35

Product specifications

Thread [M x P]M95 x 2
Diameter [D]125
Diameter [D1]114
Diameter [D2]98
Dimension [k] [H]32
Dimension [J1]113
Dimension [J2]17
Dimension [N1]6.4
Dimension [N2]8
Static Axial Load Carrying Capacity [kN]710
Mass [kg]1.25
GrubscrewM10
Recommended Grubscrew Tightening Torque [Nm]35
