KMTA11

Ondrives Precision Gears and Gearboxes Part number KMTA11

KMTA11

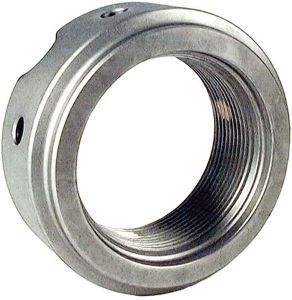

Compact Design Bearing Locknut, M55
Ondrives Precision Gears and Gearboxes Part number KMTA11 Ondrives Precision Gears and Gearboxes Part number KMTA11 Ondrives Precision Gears and Gearboxes Part number KMTA11

Product specifications

Thread [M x P]M55 x 1.5
Diameter [D]75
Diameter [D1]70
Diameter [D2]58
Dimension [k] [H]24
Dimension [J1]66.5
Dimension [J2]13
Dimension [N1]4.3
Dimension [N2]6
Static Axial Load Carrying Capacity [kN]340
Mass [kg]0.37
GrubscrewM6
Recommended Grubscrew Tightening Torque [Nm]8
