QBK4020

Ondrives Precision Gears and Gearboxes Part number QBK4020

QBK4020

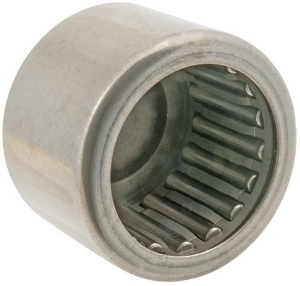

Closed End Needle Roller Bearing to DIN 618 Part 1. 40mm Bore.
Ondrives Precision Gears and Gearboxes Part number QBK4020 Ondrives Precision Gears and Gearboxes Part number QBK4020

Product specifications

Bore Diameter [d]40
Diameter [A]47
Dimension [W] +0/-0.220
Dimension [C] Max.2.7
Depth of Bore [T]17.3
Dynamic Load Rating [N]25900
Static Load Rating [N]52500
Limiting Speed - Grease [rpm]4000
Limiting Speed - Oil [rpm]6000
Mass (g)64

Product specifications

Bore Diameter [d]40
Diameter [A]47
Dimension [W] +0/-0.220
Dimension [C] Max.2.7
Depth of Bore [T]17.3
Dynamic Load Rating [N]25900
Static Load Rating [N]52500
Limiting Speed - Grease [rpm]4000
Limiting Speed - Oil [rpm]6000
Mass (g)64
