QBK3012

Ondrives Precision Gears and Gearboxes Part number QBK3012

QBK3012

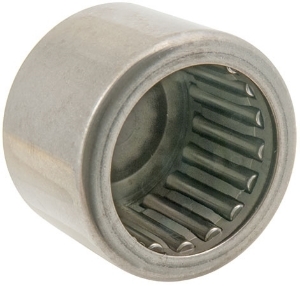

Closed End Needle Roller Bearing to DIN 618 Part 1. 30mm Bore.
Ondrives Precision Gears and Gearboxes Part number QBK3012 Ondrives Precision Gears and Gearboxes Part number QBK3012

Product specifications

Bore Diameter [d]30
Diameter [A]37
Dimension [W] +0/-0.212
Dimension [C] Max.2.7
Depth of Bore [T]9.3
Dynamic Load Rating [N]13000
Static Load Rating [N]19500
Limiting Speed - Grease [rpm]5500
Limiting Speed - Oil [rpm]8000
Mass (g)24

Product specifications

Bore Diameter [d]30
Diameter [A]37
Dimension [W] +0/-0.212
Dimension [C] Max.2.7
Depth of Bore [T]9.3
Dynamic Load Rating [N]13000
Static Load Rating [N]19500
Limiting Speed - Grease [rpm]5500
Limiting Speed - Oil [rpm]8000
Mass (g)24
