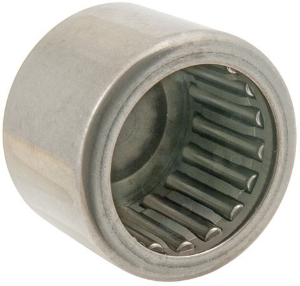

QBK2020

Ondrives Precision Gears and Gearboxes Part number QBK2020

QBK2020

Closed End Needle Roller Bearing to DIN 618 Part 1. 20mm Bore.
Ondrives Precision Gears and Gearboxes Part number QBK2020 Ondrives Precision Gears and Gearboxes Part number QBK2020

Product specifications

Bore Diameter [d]20
Diameter [A]26
Dimension [W] +0/-0.220, 20
Dimension [C] Max.2.7
Depth of Bore [T]17.3
Dynamic Load Rating [N]16400
Static Load Rating [N]27100
Limiting Speed - Grease [rpm]8000
Limiting Speed - Oil [rpm]12000
Mass (g)27

Product specifications

Bore Diameter [d]20
Diameter [A]26
Dimension [W] +0/-0.220, 20
Dimension [C] Max.2.7
Depth of Bore [T]17.3
Dynamic Load Rating [N]16400
Static Load Rating [N]27100
Limiting Speed - Grease [rpm]8000
Limiting Speed - Oil [rpm]12000
Mass (g)27
