QBK1812

Ondrives Precision Gears and Gearboxes Part number QBK1812

QBK1812

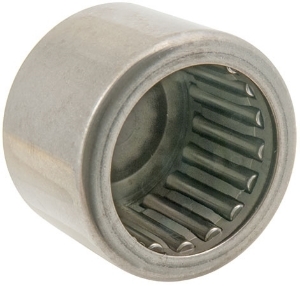

Closed End Needle Roller Bearing to DIN 618 Part 1. 18mm Bore.
Ondrives Precision Gears and Gearboxes Part number QBK1812 Ondrives Precision Gears and Gearboxes Part number QBK1812

Product specifications

Bore Diameter [d]18
Diameter [A]24
Dimension [W] +0/-0.212
Dimension [C] Max.2.7
Depth of Bore [T]9.3
Dynamic Load Rating [N]8300
Static Load Rating [N]10900
Limiting Speed - Grease [rpm]8500
Limiting Speed - Oil [rpm]13000
Mass (g)15

Product specifications

Bore Diameter [d]18
Diameter [A]24
Dimension [W] +0/-0.212
Dimension [C] Max.2.7
Depth of Bore [T]9.3
Dynamic Load Rating [N]8300
Static Load Rating [N]10900
Limiting Speed - Grease [rpm]8500
Limiting Speed - Oil [rpm]13000
Mass (g)15
